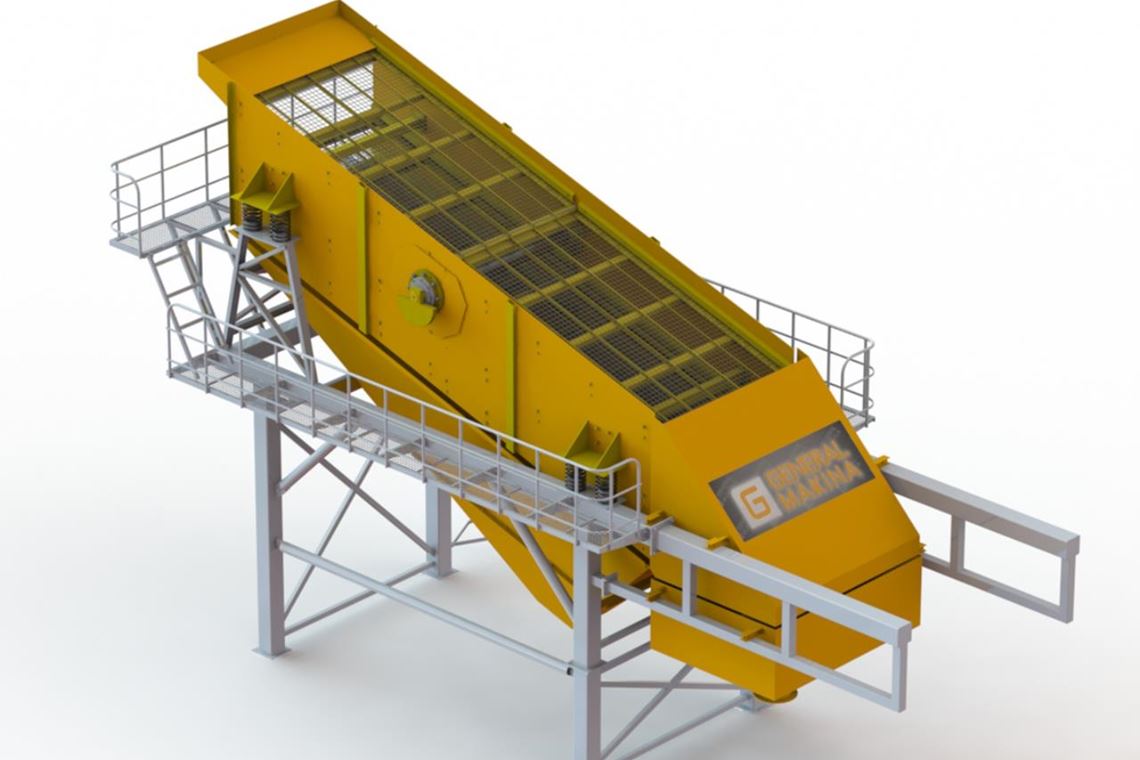

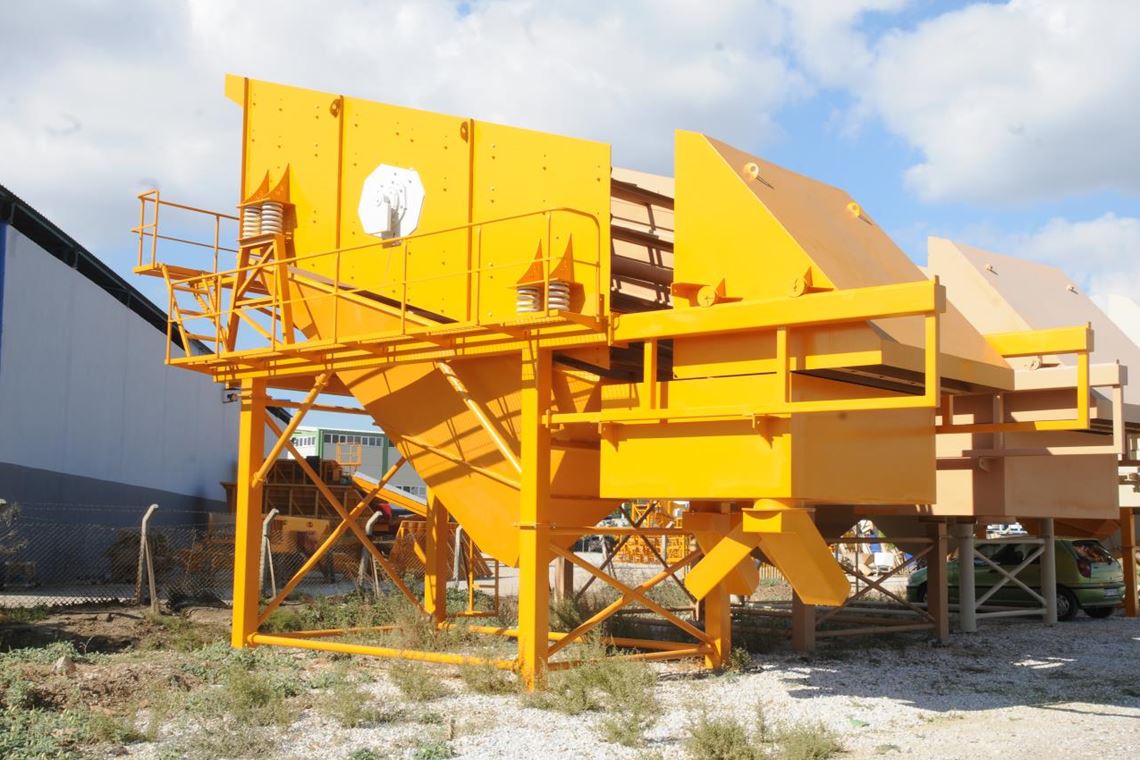

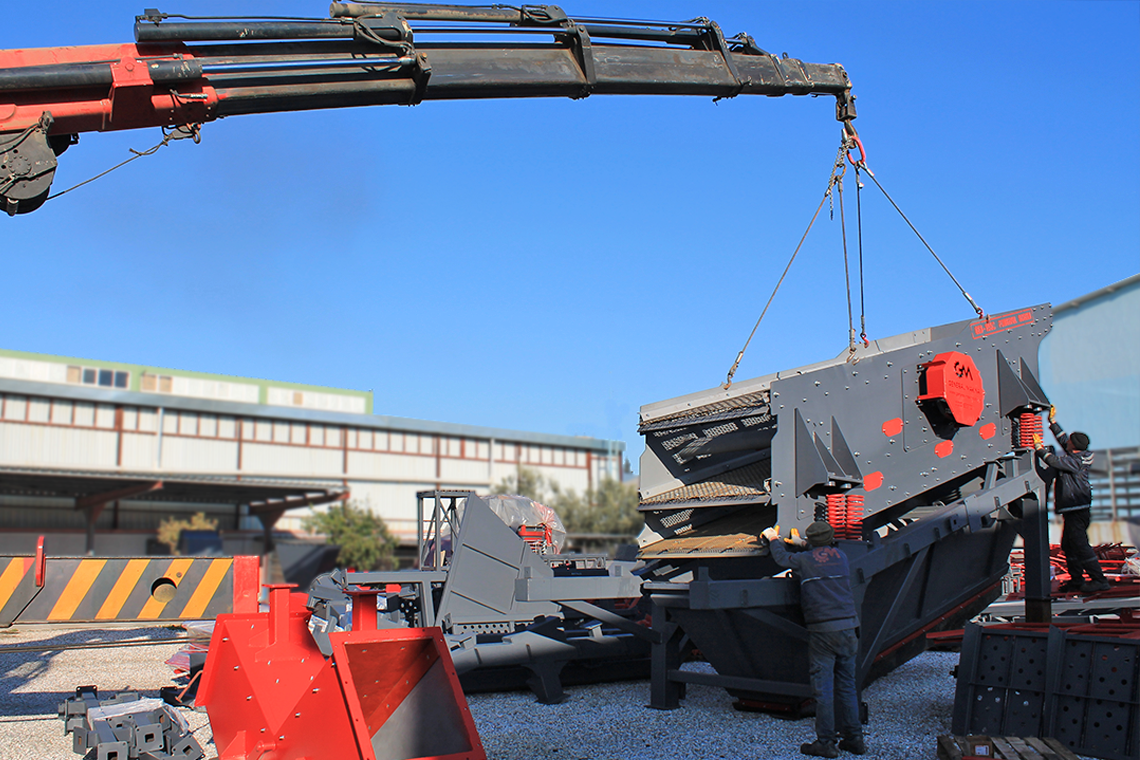

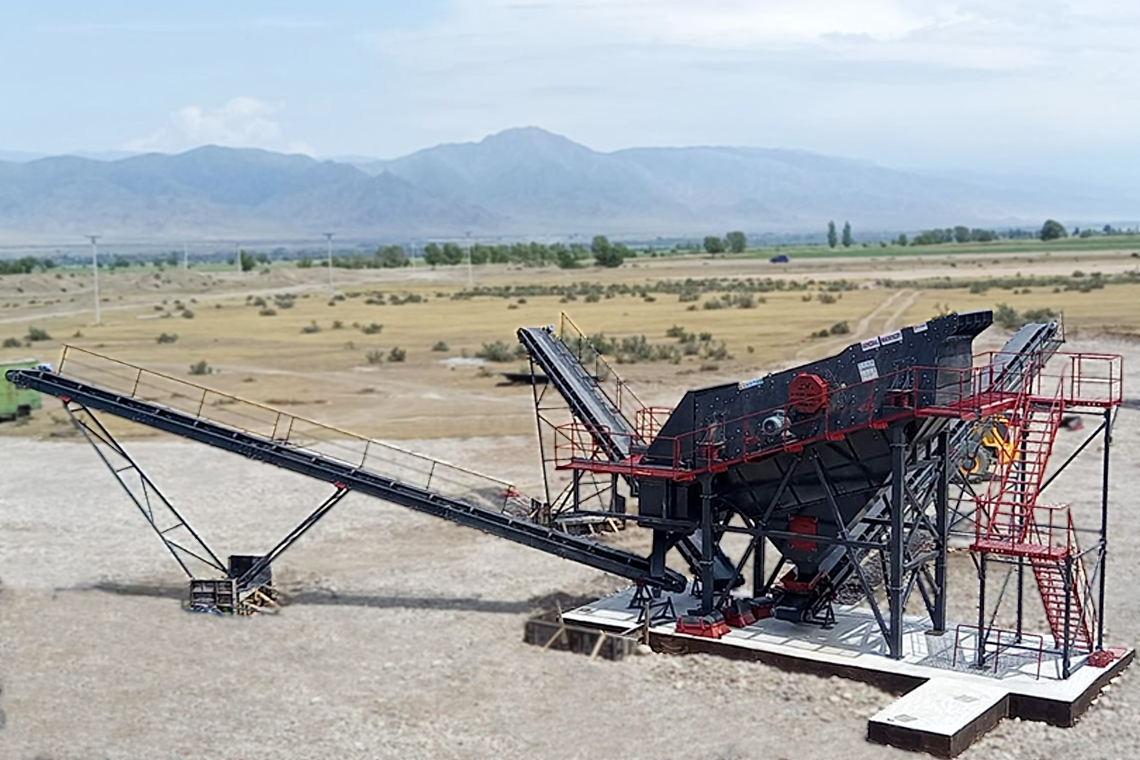

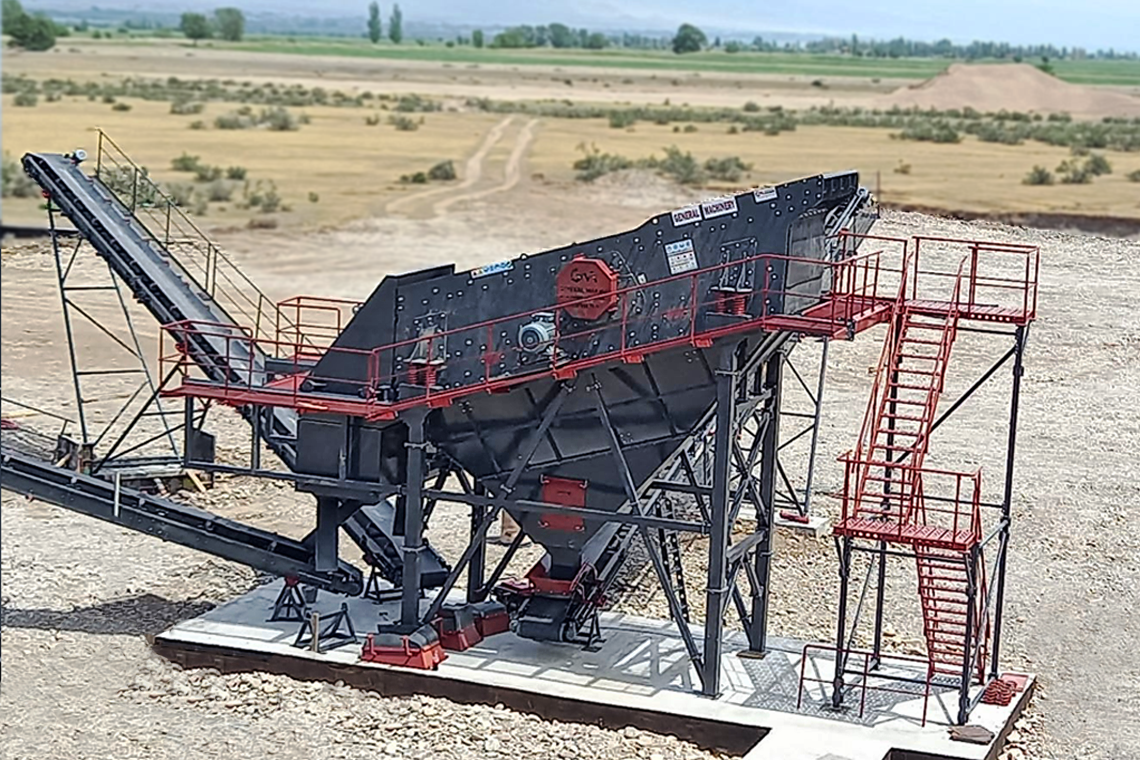

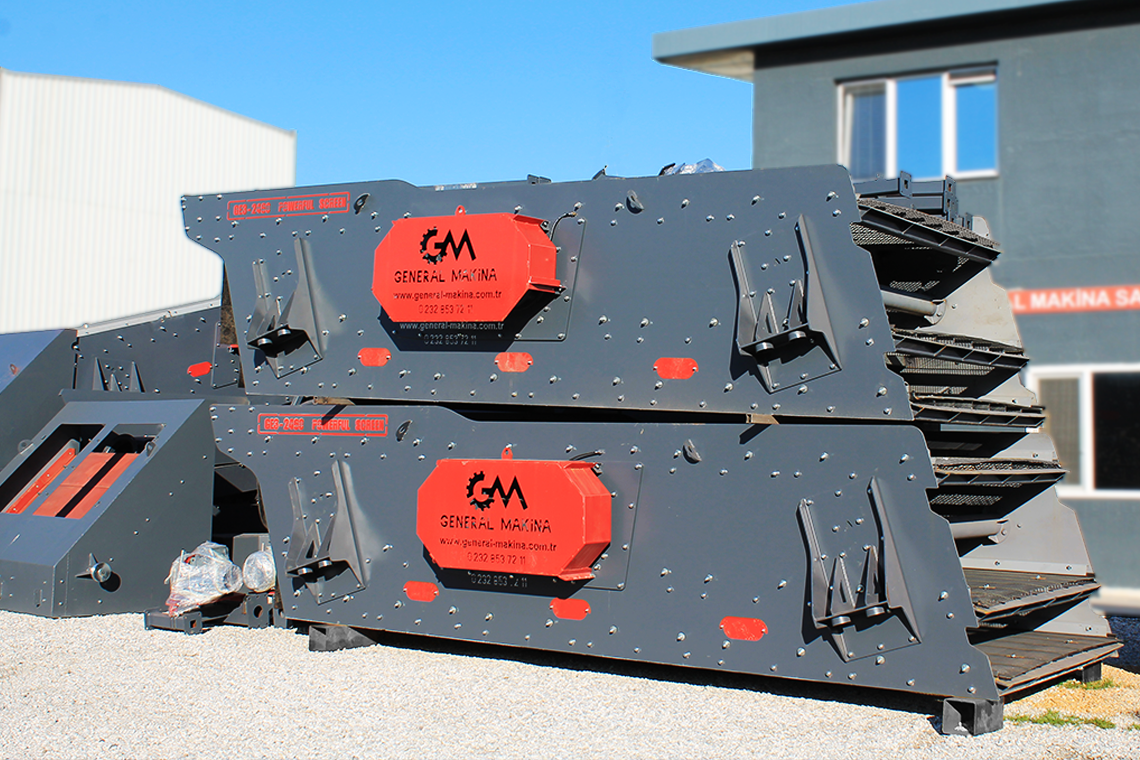

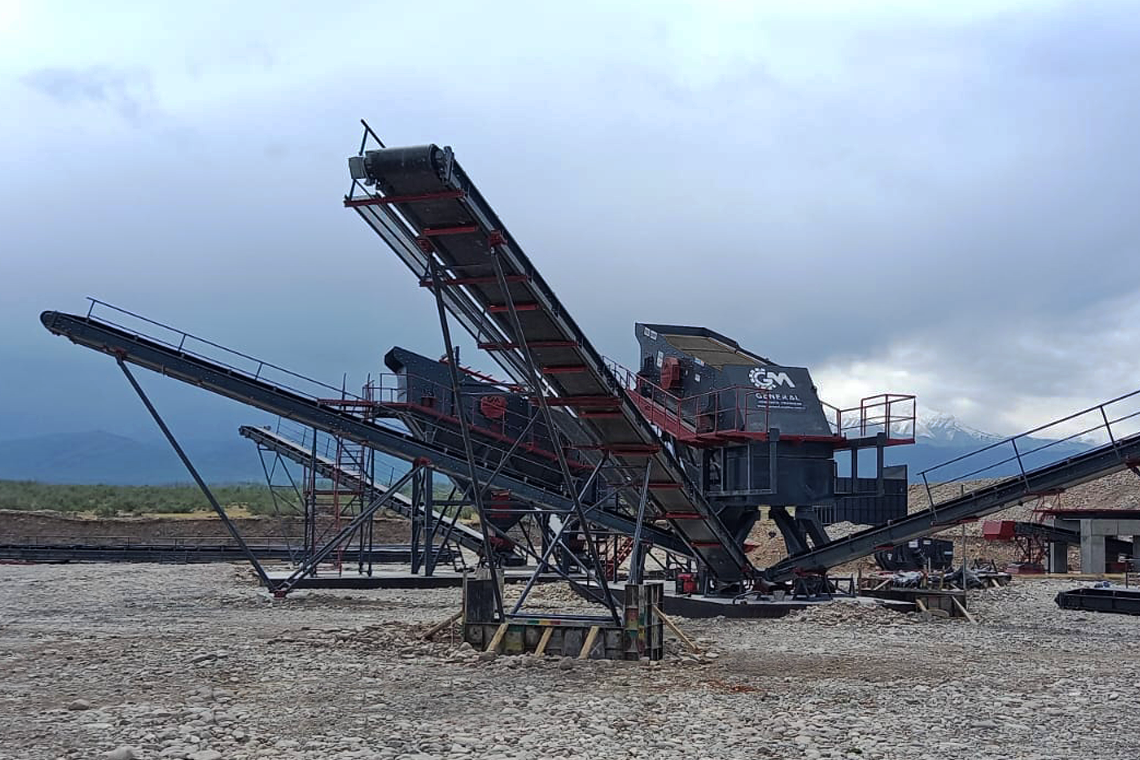

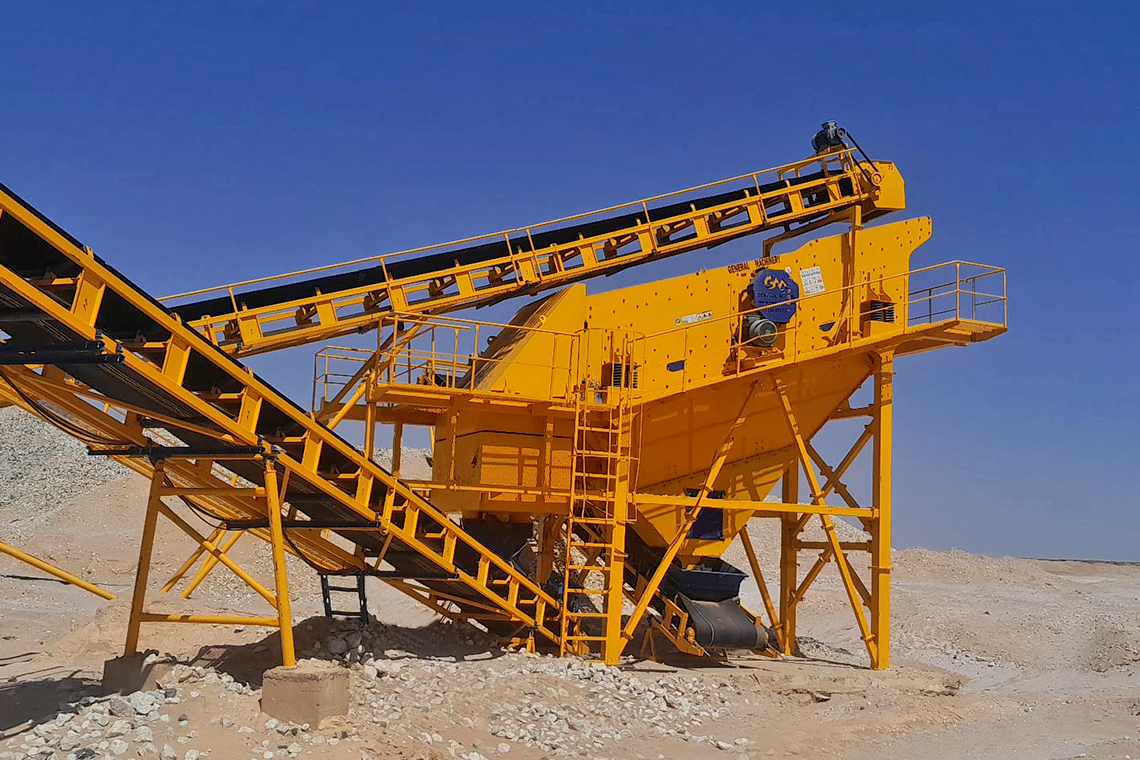

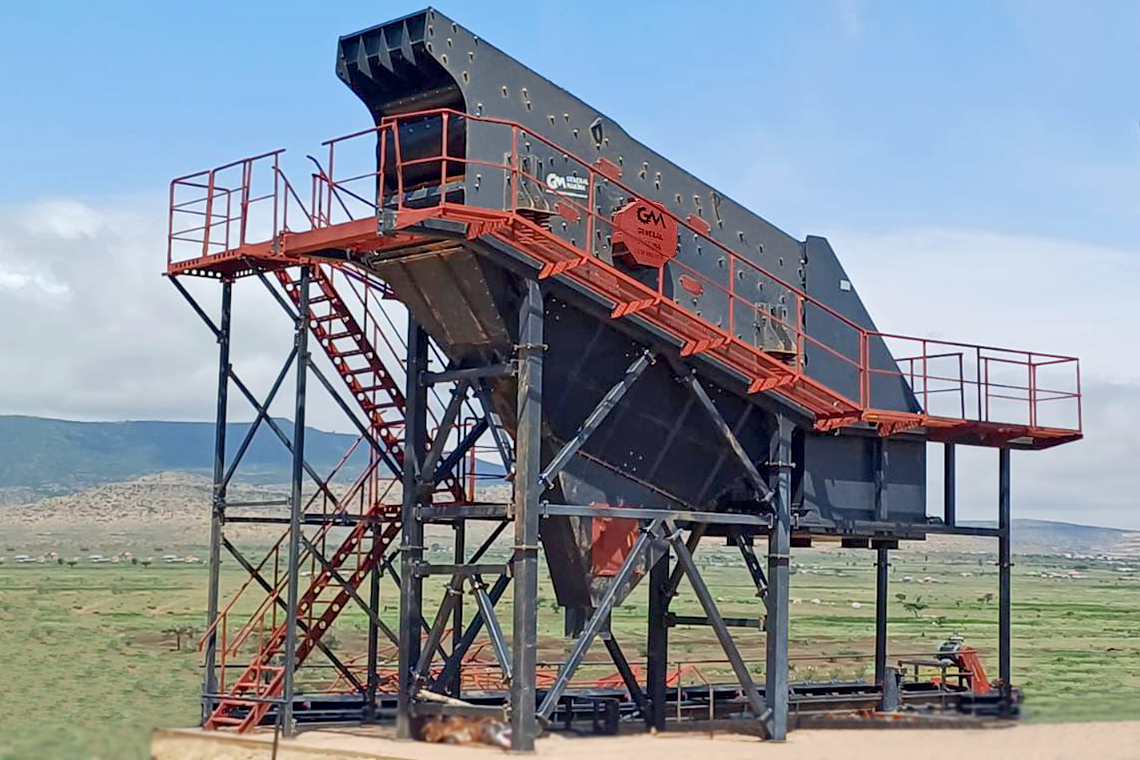

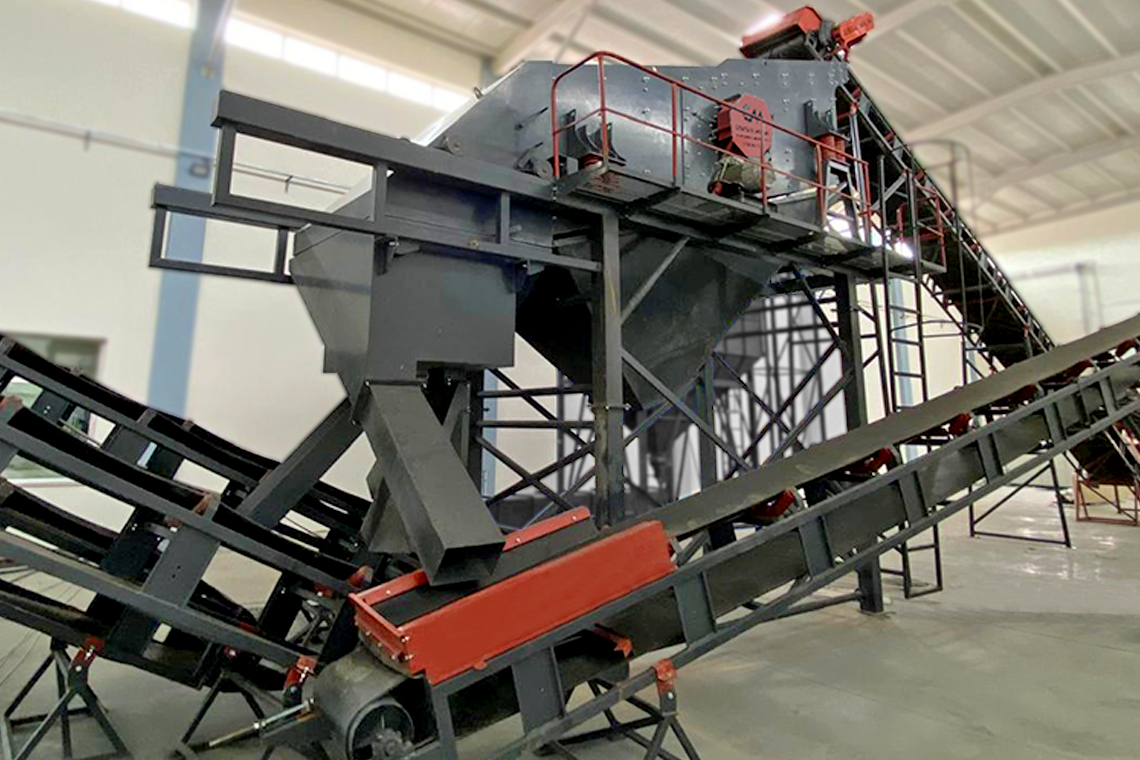

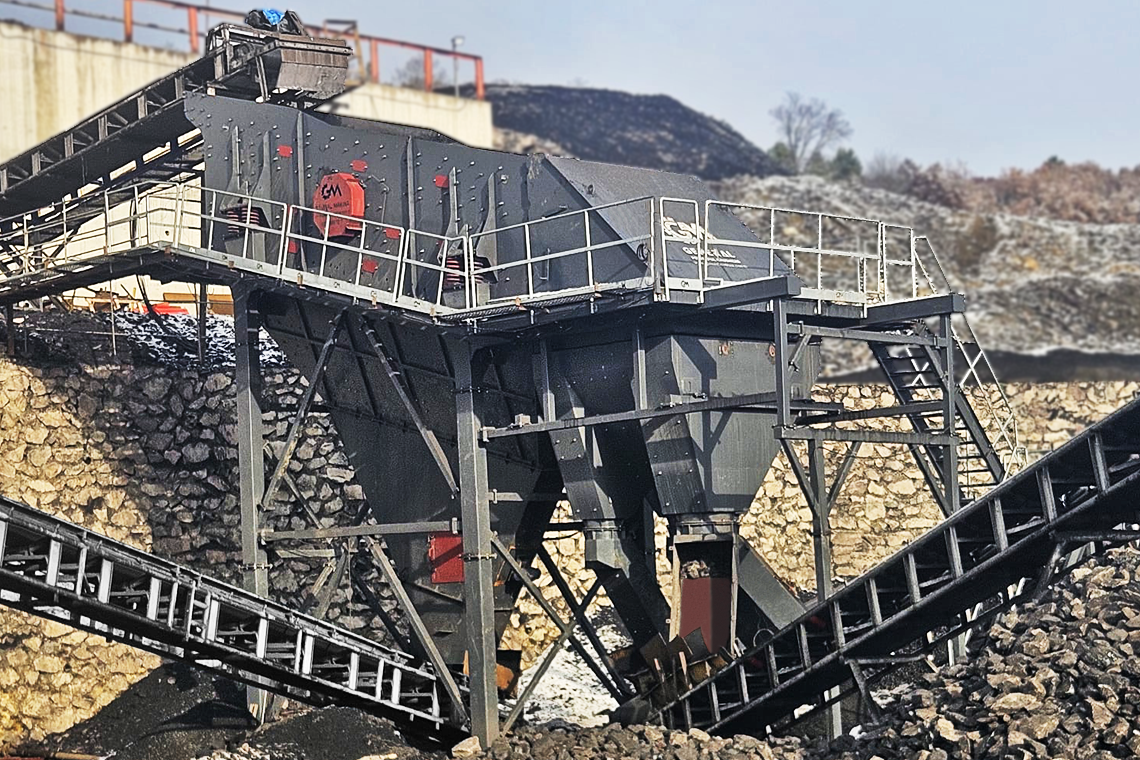

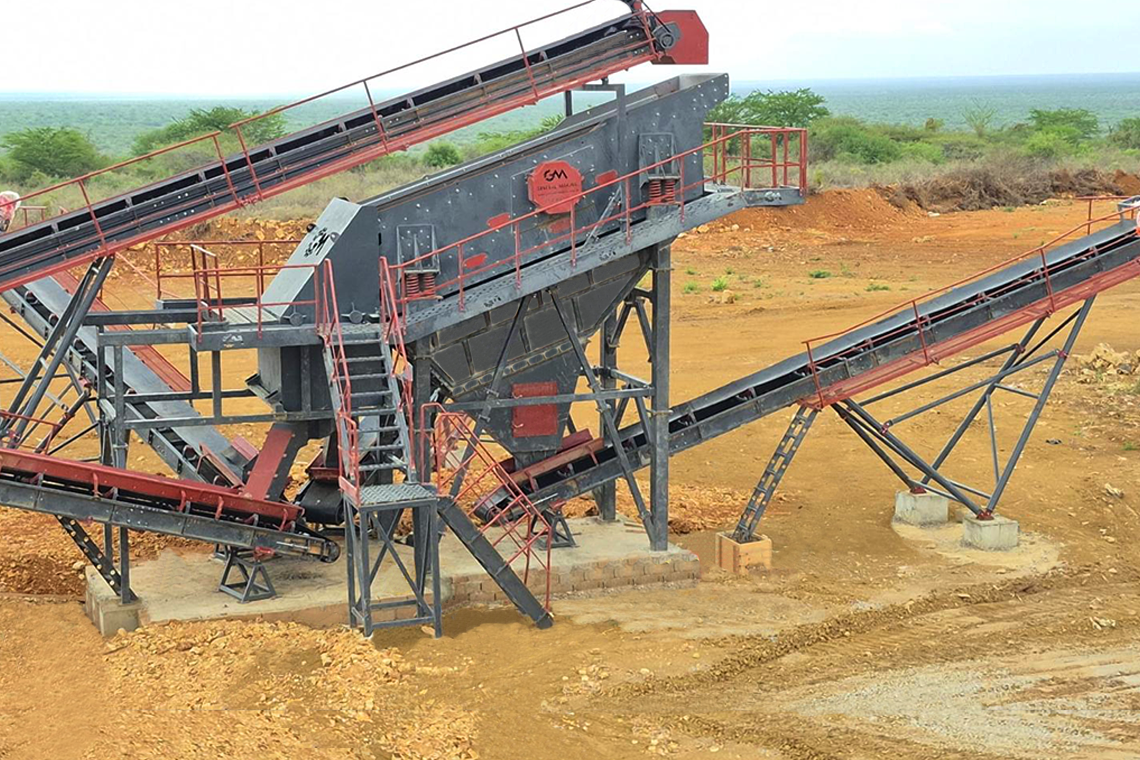

Conventional Vibrating Screen
General Mechinery Conventional Vibrating screens are used to seperate broken material for desired size in all the streams and furnace plants. Specifically produced vibrating screens by General Machinery that is designed considering easy to use and low operating costs. Seamless bolted frame construction for production, easily replaceable screen wires, with crack front groove allowing the flow in the desired direction of the desired material, the material is flowing surfaces that prevent erosion Stone-boxl front groove , at General Machinery vibrating screen is offered to customers as standard .General Machinery Vibrating Screens were designed your needs to receive as faultless.
MODEL | SCREEN SIZE (mm) | MOTOR(kW/rpm) | WEIGHT (kg) | |||
---|---|---|---|---|---|---|
single deck | 2 decks | 3 decks | 4 decks | |||
GNR 1020 | 1000X2000 | 4 /1500 | 1100 | 1200 | 1800 | - |
GNR 1025 | 1000x2500 | 4 /1500 | 1500 | 1800 | 2200 | - |
GNR 1030 | 1000X3000 | 5,5 /1500 | 1500 | 1700 | 2200 | 2700 |
GNR 1230 | 1200X3000 | 7,5 /1500 | - | 2200 | 2700 | 3100 |
GNR 1540 | 1500X4000 | 11 /1500 | - | 5400 | 6200 | 6600 |
GNR 1650 | 1600X5000 | 15 /1500 | - | 6400 | 7600 | 8100 |
GNR 2050 | 2000x5000 | 18,5 /1500 | - | 8350 | 8700 | 11000 |
GNR 2060 | 2000X6000 | 18,5 /1500 | - | - | 13000 | 12700 |

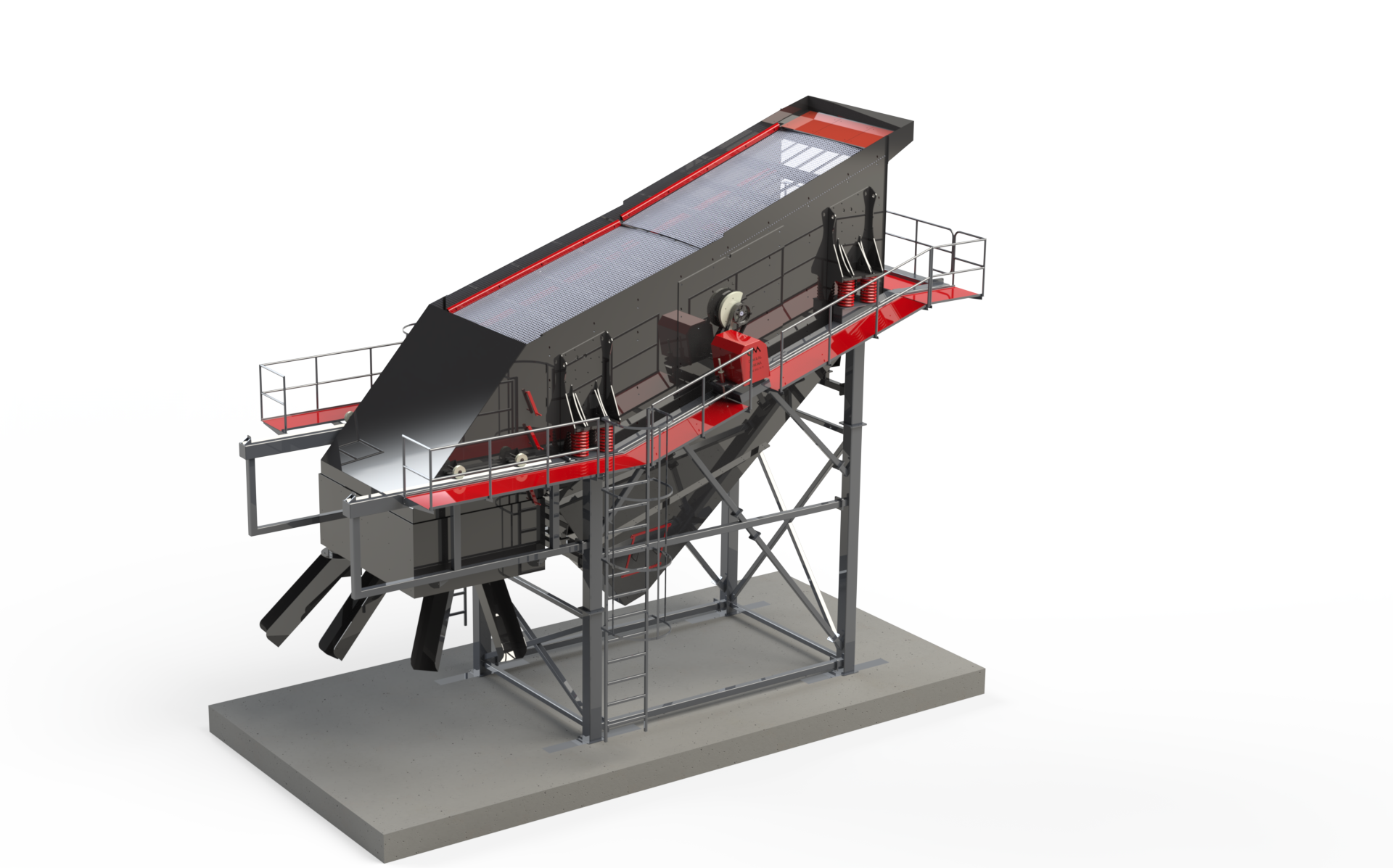

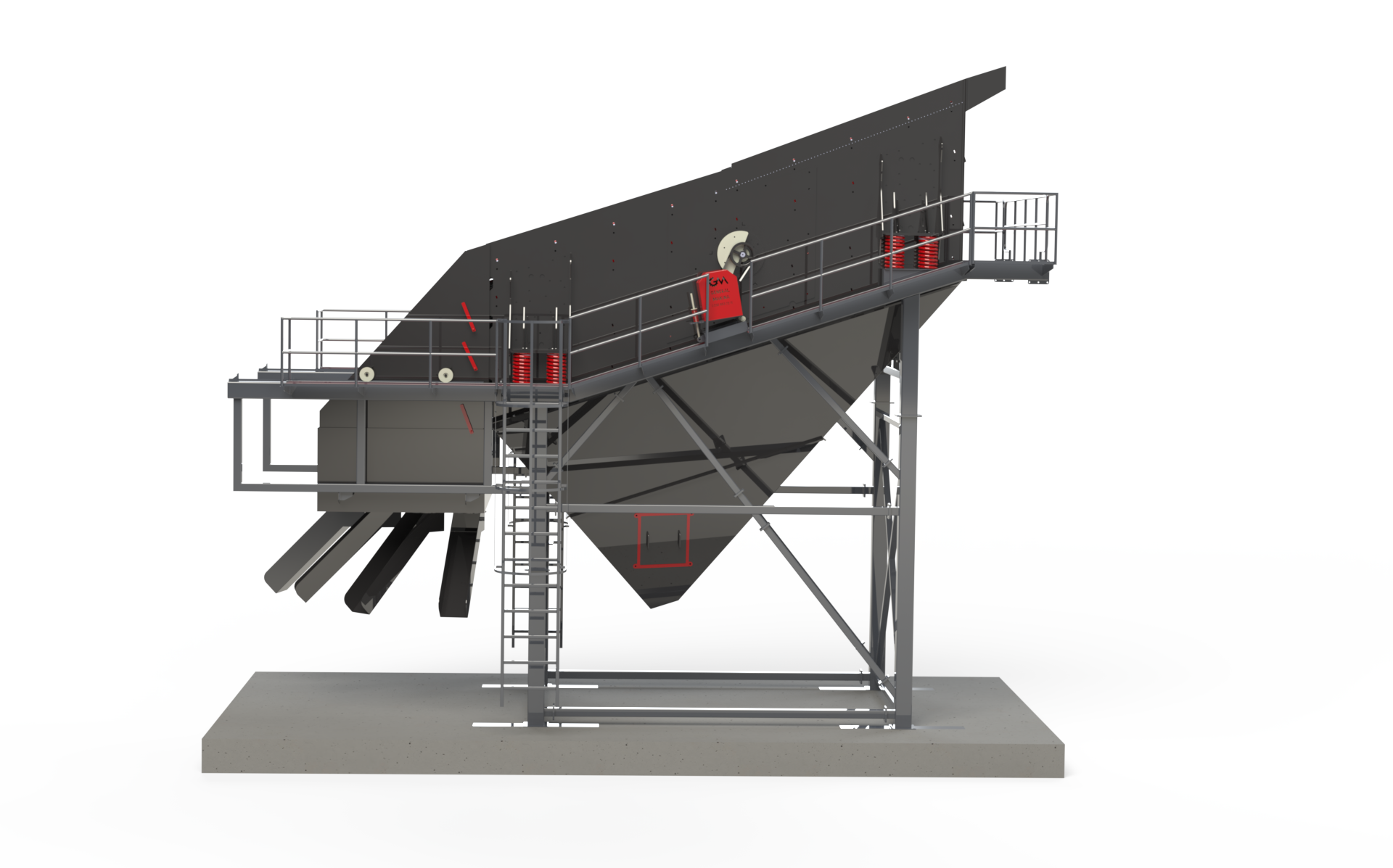

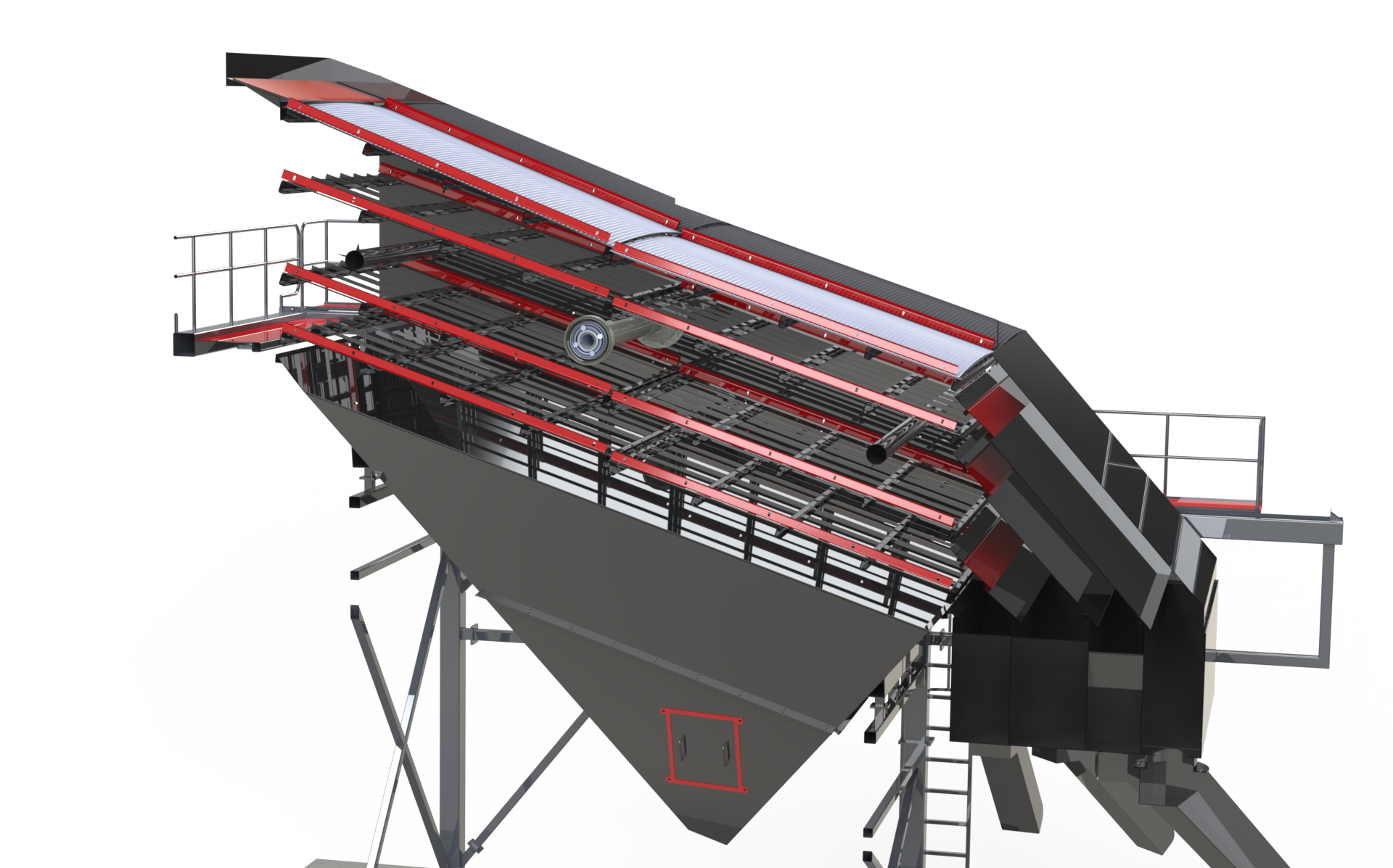

GNR 2460 | 2400X6000 | 22 /1500 | - | - | 14500 | 15200 |
GNR 2470 | 2400X7000 | 30 /1500 | - | - | - | 16800 |
