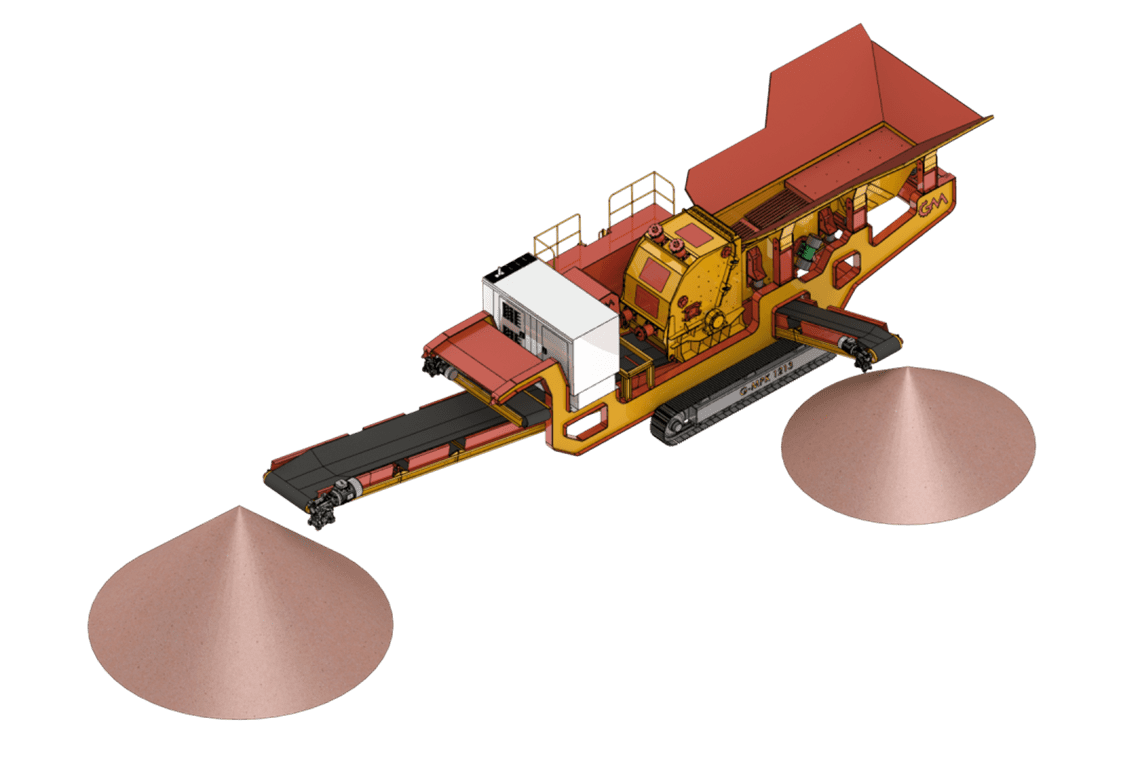

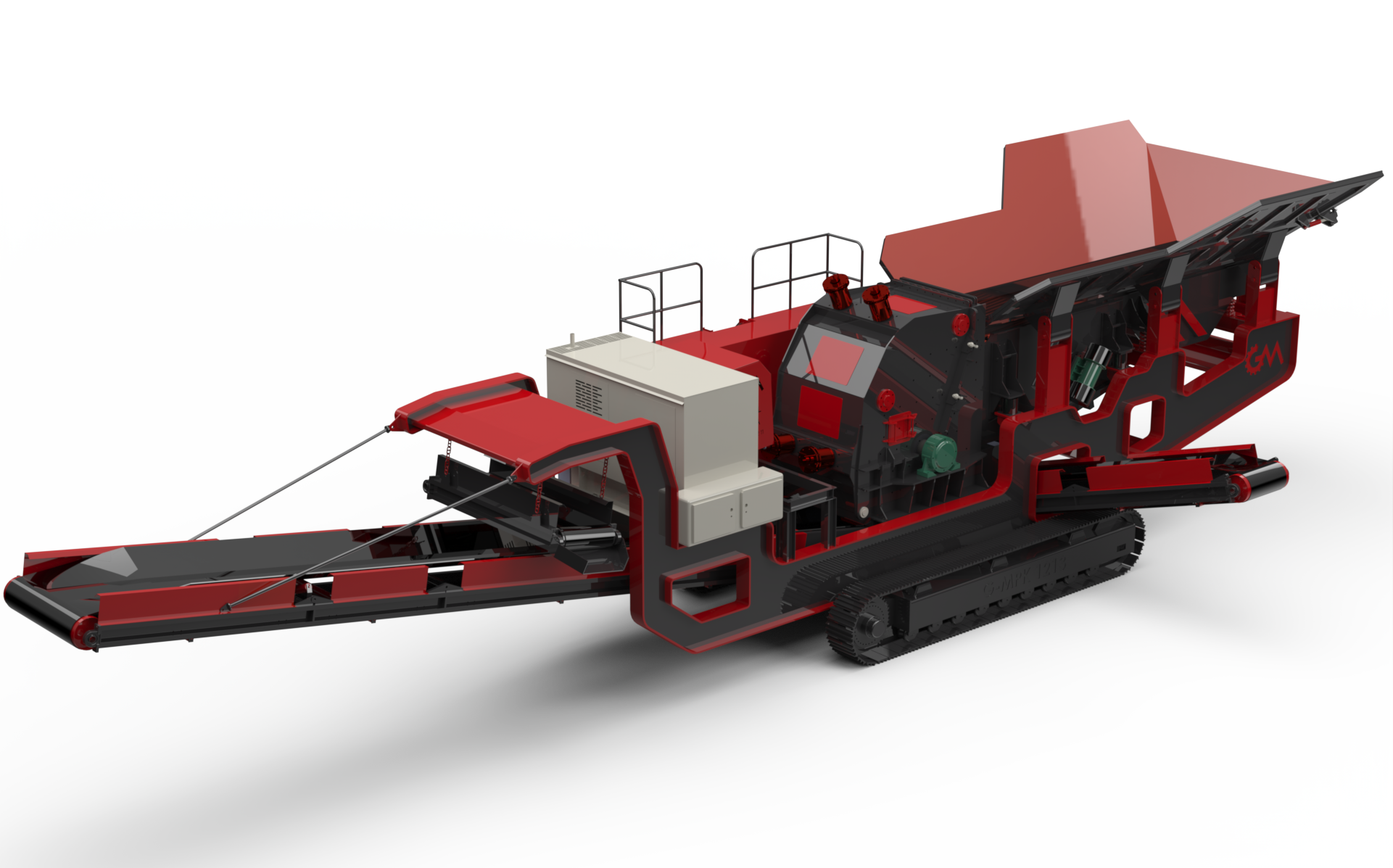

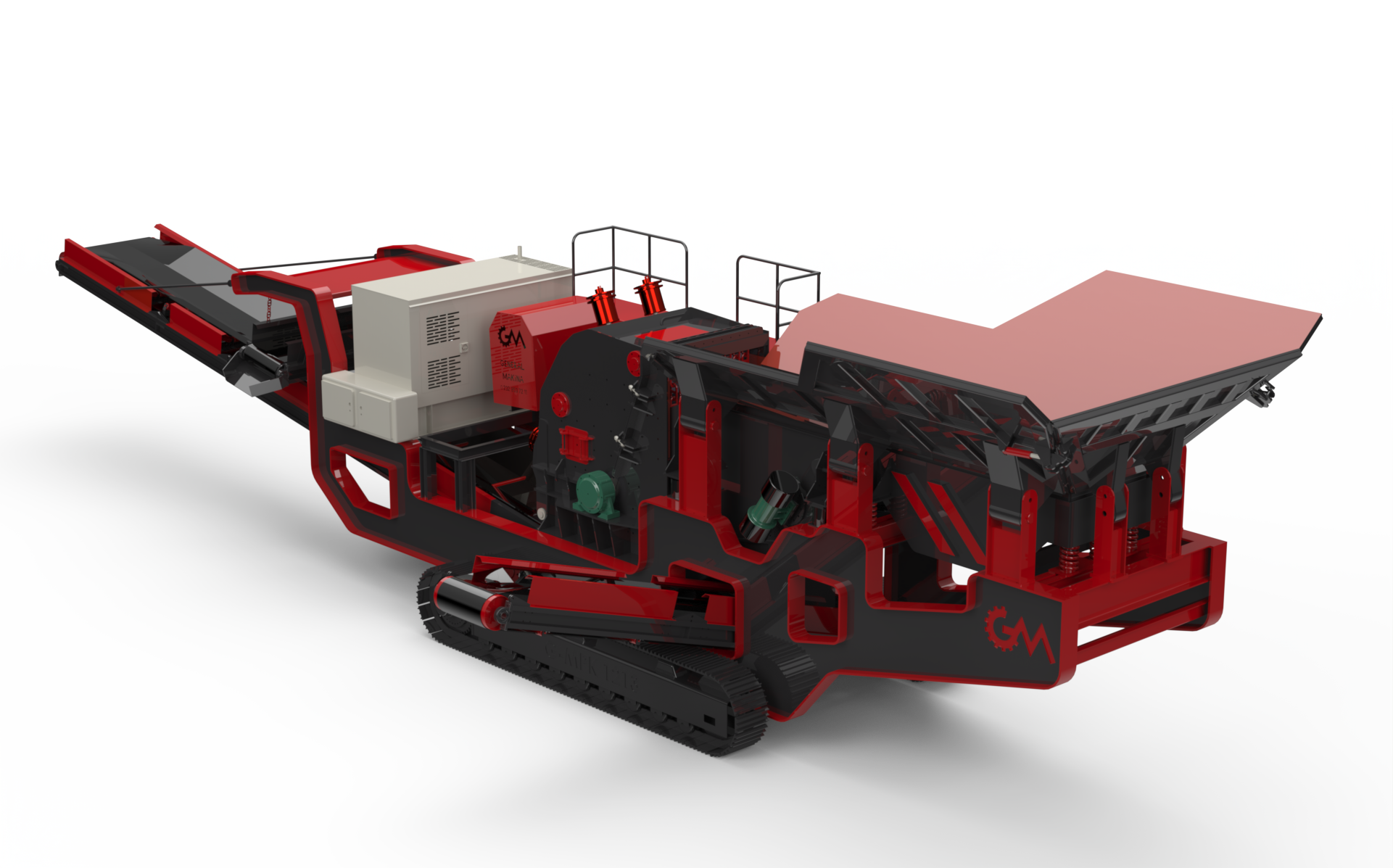

GM 100
  • Ekipman General Makina 01 Konkasör Tesisi
  • Besleme Açıklığı 1.000 x 650 mm (40 x 26 inç)
  • Maksimum Besleme Boyutu 520 mm (21 inç)
  • Kapasite 225 metrik ton/saat (248 kısa ton/saat)

General Machinery Stone Crushing and Concrete Batching Plants, Track Mounted Mobile Crushers GM 100 offers a hundred percent solution to your customers with carefully designed stone crushing machines.


Track Mounted Mobile Crushers GM 100 General Features

  • Bunker Reservoir: 3.6 m3
  • Feeder Dimensions: 900x2,400 mm. Drive: 2x2.6 kW vibro engine. Feeder Capacity: 100-180 t / s
  • Grid Vibro Feeder Dimension: 1.000x1.500 mm Drive: 2x2 kW vibro motor
  • Impact Crusher: GNR-01. Drive: 160 kW. 1500 RPM
  • Main Conveyor Belt: 1000x10000 mm 1 piece
  • Walking Teams Strickland 3800x400 mm 1 piece
  • Bypass Conveyor 600x5000 mm 1 piece
  • Pallet Screen1500x5500 mm 3 Deck.
  • Feeding Band 800x5000 mm 1 piece
  • Screen Feeding Band 1000x12000mm 1 piece
  • Under Screen Product Band 1200x7000mm 1 piece
  • Stock Band 600x7000 mm 3 pieces
  • Power unit: 450 kVA
